Products

Cameras

Broad support, from USB cameras to any RTSP-capable IP camera.

01

USB Cameras

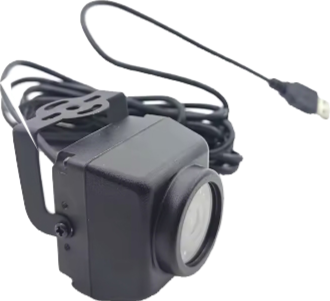

USB Camera A

USB Camera A

  • Resolution 1920×1080
  • Field of view H:95° D:112°
  • Manual focus
  • Rated voltage 5V
  • IR

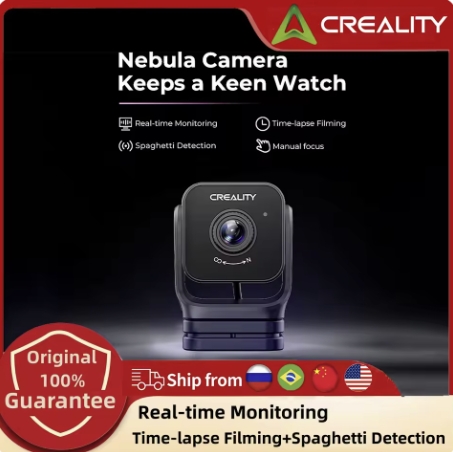

USB Camera B

USB Camera B

  • OV2710 2MP / H61 1MP
  • 1920×1080 / 1280×720
  • 1080P / 720P
  • Focal length 2.8, 3.6, 6mm
02

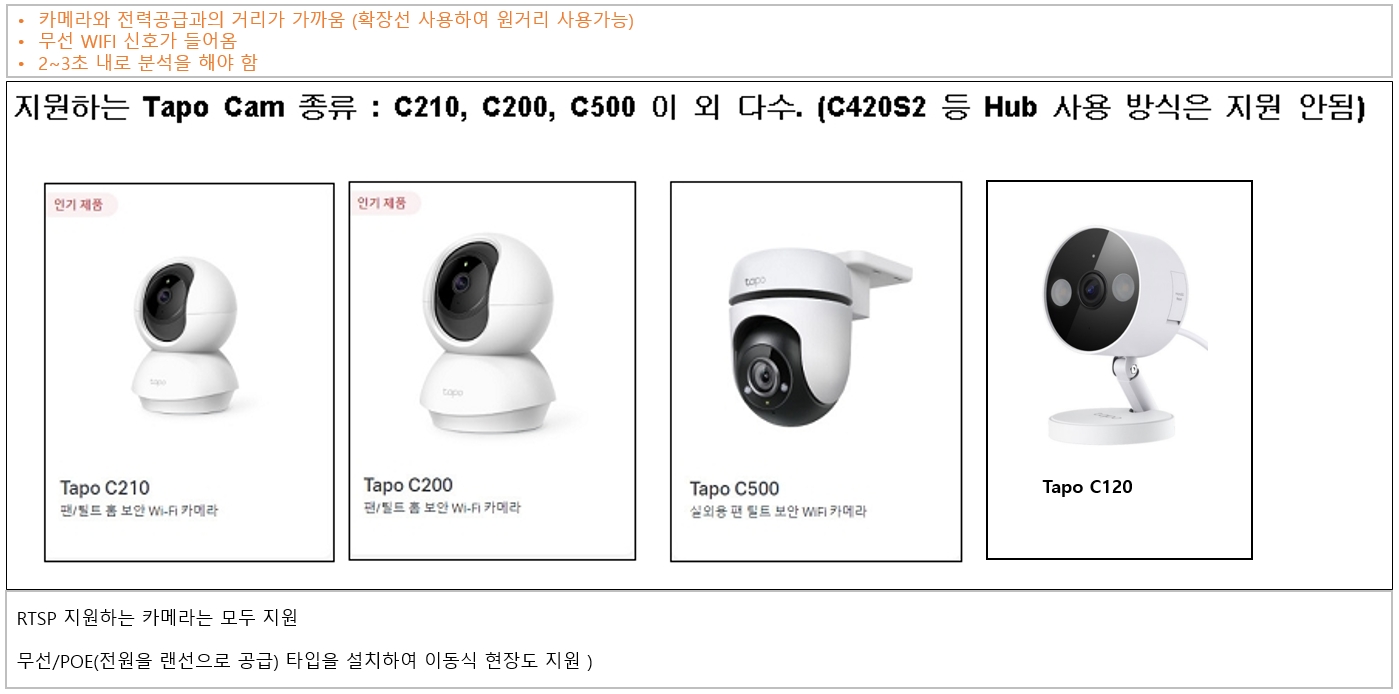

Tapo Cam

Any camera that supports RTSP can be used.

  • Find the RTSP address in the Tapo Cam app — see the user manual
Tapo Cam
03

IP Cameras

Use any camera that supports RTSP.

  • With a PoE hub, power is supplied over the LAN cable alone, reaching distant locations
  • 1080P H.264 resolution, dustproof / waterproof, PoE support

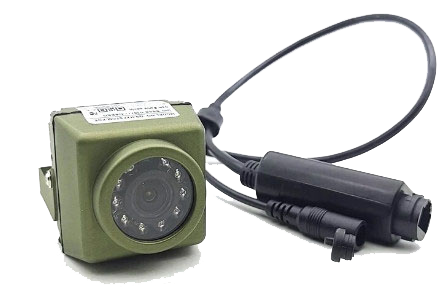

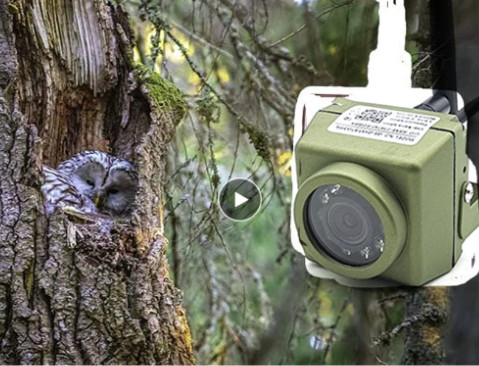

IP camera
IP camera

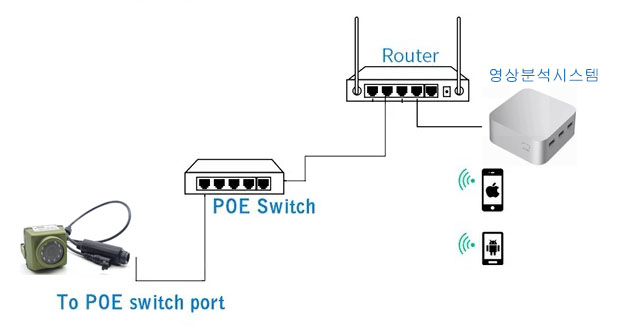

PoE network setup
IP Setup & RTSP Address

IP Camera Setup Guide

After purchasing an IP camera, set its IP to match your network range, set a password, and then find its RTSP address.

  1. Download the IP search tool below, check 'Create a desktop shortcut', and install it.
  2. After installation, launch the program or click the Search Tool icon on your desktop.
  3. Click the Next button at the bottom; when your camera is found, select it and click Next.
  4. The upper IP panel holds the new settings; the lower IP panel shows the camera's current IP settings.
  5. In the upper panel, enter the IP range, IP, User and Password you want (these become the RTSP id and pwd). The port is 554.
  6. Click Next to apply. The RTSP address will look like the one below; enter it in the tg-eyeVision RTSP address field to finish (see the user manual).
IP Address  192.168.0.100
SubMask     255.255.255.0
GateWay     192.168.0.1
Name        IPCam
User        admin
Password    pwd

RTSP        rtsp://admin:pwd@192.168.0.100:554/11
Download IP Search Tool
